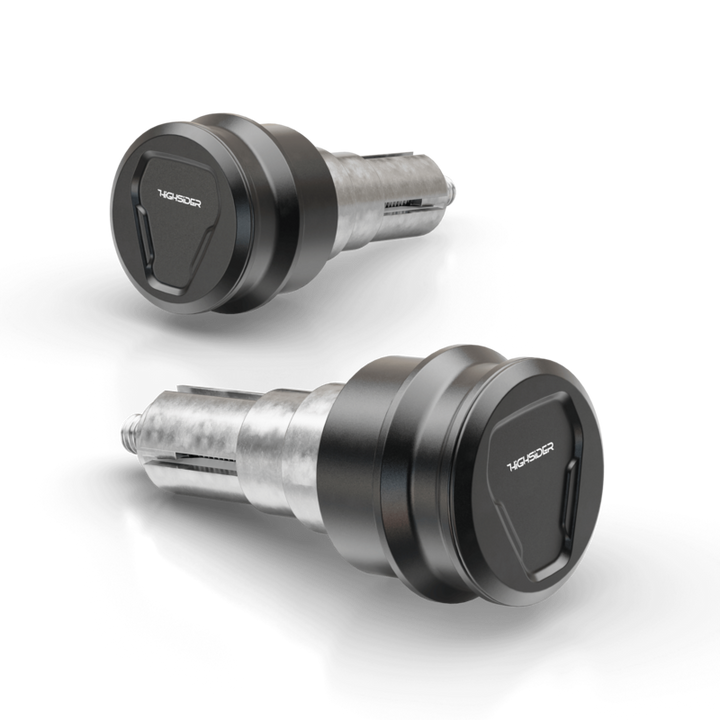

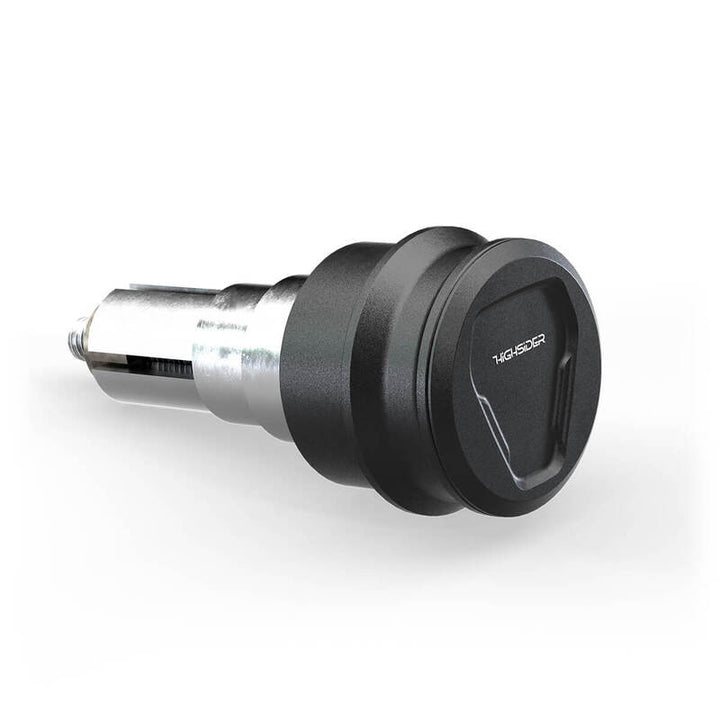

Highsider ESAGANO-LS Handlebar Weights 161-364

Highsider ESAGANO-LS motorcycle handlebar weights

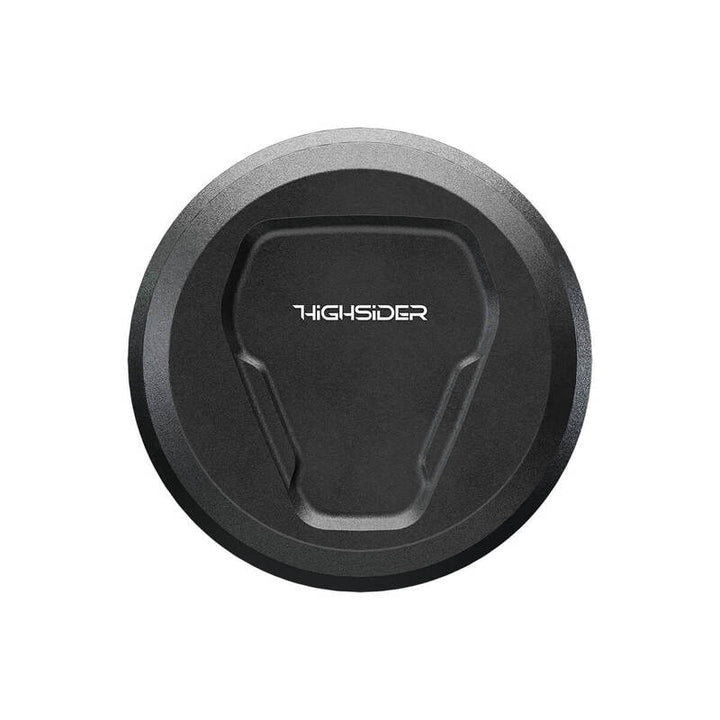

Steep and flat trapezoids form the basic shape of the Highsider ESAGANO-LS handlebar ends CNC machined from aluminum and create a futuristic design, which thus symbolizes the design language of modern motorcycles. A visual highlight is the cover in which the hexagonal basic shape of our ESAGANO-RS mirror series is CNC-machined. This gives the bar ends a closed appearance, free of the bolt head. The cover is attached via a grub screw in the invisible area of the base housing. The ESAGANO-LS handlebar ends are suitable for mounting our extensive product range of handlebar end mirrors with a stem width of 12mm. Find also you the optically matching mirrors for your bike. About our high-quality and included sleeve system made of aluminum, the bar ends can be mounted on a variety of handlebars with different inner diameters force-fit.

Dimensions:
handlebar weight Ø: 40 mm
Width: 27 mm

Take-up for mirror Ø: 29.90 mm
Take-up for mirror width: 12 mm

Scope of supply:

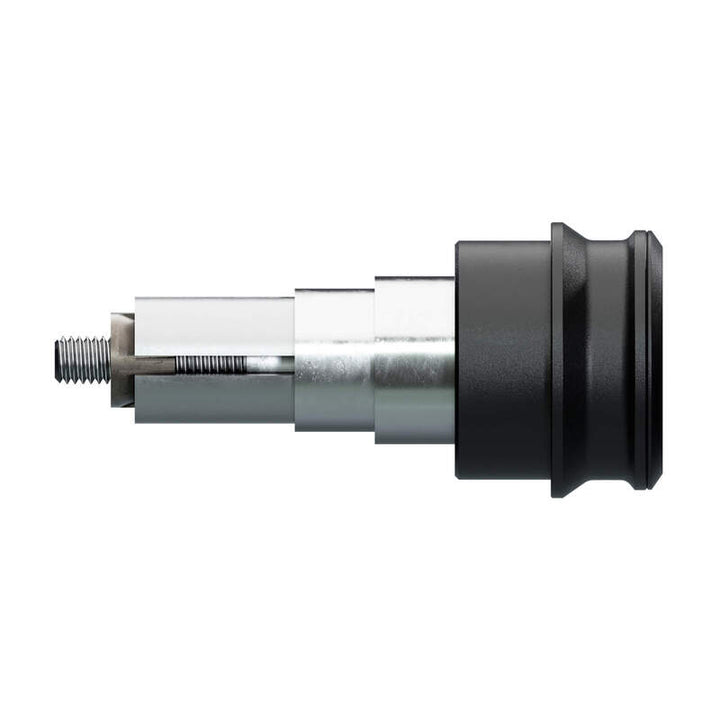

1 pair of handlebar ends incl.
Each 2 clamping sleeves with D. 12 mm and D. 16 mm
Each 2 spacer sleeves with D. 14 mm, D. 18 mm and D. 21 mm
2 x M6 central screws
2 x M6 cone nuts

NOTE:
For handlebar ends with clamping system, the ends of the handlebars must not be blocked by threaded inserts or similar.
Steering ends do not have to be approved, therefore do not require any test marks, certificates or ABEs.
