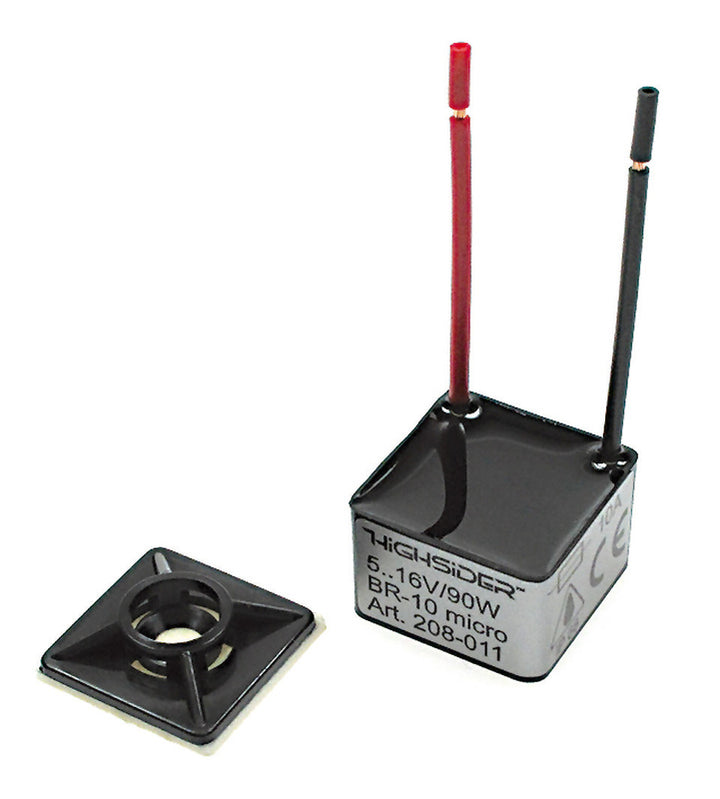

Highsider Flasher Relay BR10-micro 208-011

The Highsider BR10 Digital Flasher Relays a compact, load-independent digital flasher unit. Ideal for LED flasher conversions or incandescent 10W to 21W turn signal bulbs. The BR10 is waterproof, vibration-proof, wear-free, and overload-proof. Made in Germany.

Dimensions Length:

• 20 mm Width: 20 mm Height: 13 mm

Specifications

• Supply voltage: 5 V – 16 V Load range: 1 W – 90 W

Connections:

• red cable = 12 V (+) with terminal 49, it is recommended to connect a 10 A fuse in front.
• Connect black cable = ground (-) in series to the turn signal switch with terminal 49a

Note:

• Not compatible with push-button switches or systems that have a warning flashing function or other additional functions.
