Highsider LED Taillight Unit Mono 255-015

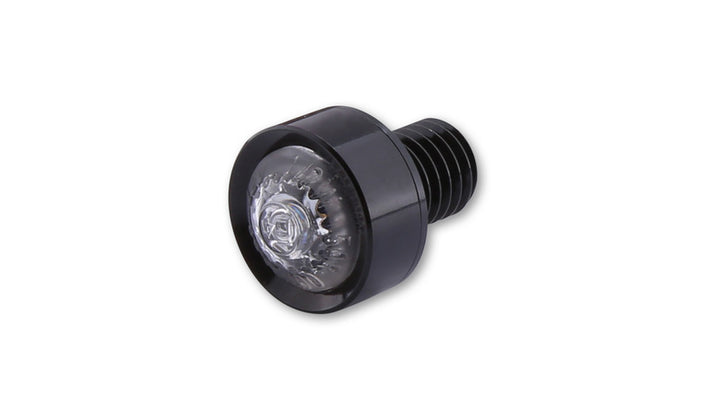

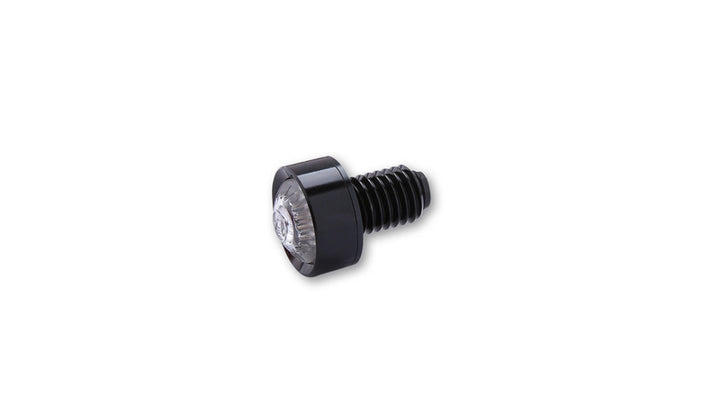

Highsider LED taillight unit MONO, clear lens, chrome plated or black, dia. 18 mm, E-marked.

Taillight with a power LED and clear glass, embedded in a round aluminum housing, E-approved.

The Highsider taillight and taillight/indicator series will be seen with certainty to give you the safety you need and the look you want whether cruiser, scooter or speedster.

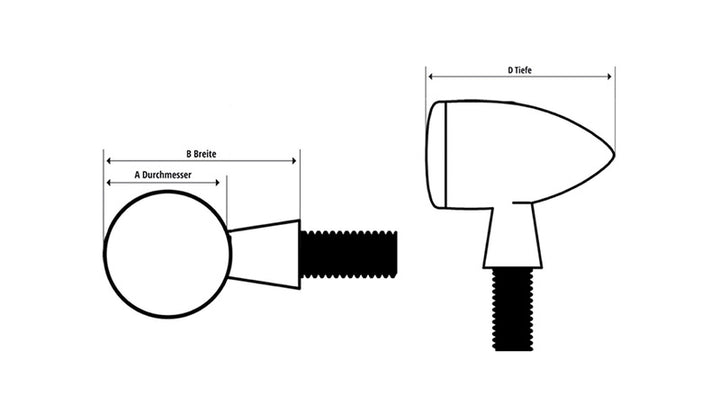

Measures:

• Diameter: 18 mm
• Height: 8 mm
• Attachment: Threaded bolt M10 x 1.5 mm,
• length: 13 mm and nylon nut.

Power consumption at 12.5 volts:

• Taillight = 0,02 Ampere
• Brakelight = 0,13 Ampere

Connections:

• Black cable = Ground (-)
• Yellow cable= Taillight (+)
• Red cable = Brakelight (+)

Supplied with: 1 piece, housing color selectable.

Optionally available: Matching LED indicators: Part No. 1108571001 (203-215)
